A 2-inch label tells you the tape width, not the roll’s cardboard core or outside diameter. To choose a compatible dispenser, confirm the tape width, core size, roll diameter, loading path, and blade before ordering; a 65-metre roll can fit one tool and fail in another.
Key takeaways
- Confirm 48–50 mm tape width, core diameter and roll diameter.
- Measure the dispenser spindle and side plates before ordering.
- Use the tension control to prevent loose seals and tape waste.
- Ask suppliers about compatible roll dimensions and replacement blades.
What “2-inch tape” means—and what it does not confirm
Usually, yes: a standard carton-sealing dispenser often accepts a 2-inch roll, but “2-inch” describes tape width, not guaranteed fit. It normally means approximately 48–50 mm across. The label says nothing about the cardboard core’s inside diameter or the loaded roll’s outside diameter.
Before buying a tape dispenser for packing boxes, match these dimensions:
- Tape width: Confirm the tool accepts 48 mm or 50 mm. A narrow frame or side guide can bind a roll only a few millimetres wider.
- Core diameter: Many hand-held models use a 3-inch core, about 76 mm inside. A 2-inch-core roll needs a matching mandrel or reducer.
- Roll outside diameter: Check the dispenser’s maximum. A 65-metre roll can fit the width slot yet rub the frame if its thickness makes the roll too large.
- Cutting edge: Ensure the blade cuts the backing cleanly. Tape thickness affects cutting, sealing strength, and roll diameter.
A tape dispenser for packing tape is not confirmed by “2-inch” or tape length alone. Brown packaging tape with dispenser describes colour and format, not performance: the tape may have BOPP, PVC, or paper backing, and the tool cannot identify its adhesive. Specify the backing, adhesive, thickness, width, core, and roll length separately.
Measure the roll and dispenser before you buy
Check four physical points before buying a tape dispenser for packaging tape: tape width, core inside diameter, loaded roll outside diameter, and clearance around the roll.
| Dimension | Measure on the roll | Confirm on the dispenser |
|---|---|---|
| Tape width | Measure the tape edge to edge: usually 48 or 50 mm for “2-inch” tape. | Check the stated maximum width and whether the side guides accept 48 mm, 50 mm, or both. |
| Core inside diameter | Measure the cardboard hole from inner edge to inner edge. | Match it to the mandrel, such as 25 mm, 50 mm, or 76 mm (3 inches). A 2-inch-wide roll can still have a 3-inch core. |
| Roll outside diameter | Measure across the full loaded roll, not just the cardboard core. | Compare it with the dispenser’s maximum roll diameter and check that the frame does not rub the tape. |
| Roll length | Read the metres printed on the roll. | Treat length as a warning, not a fit measurement: a 65-metre roll can be too large if its tape is thick. |
A 50 mm roll that exceeds the dispenser’s width slot will bind at the guides, while a smaller core can wobble on a 3-inch mandrel. Confirm that the blade reaches the backing cleanly and that the roll has side clearance when loaded.
Send the supplier all three roll measurements—width, core diameter, and outside diameter—rather than saying only “2-inch tape.”

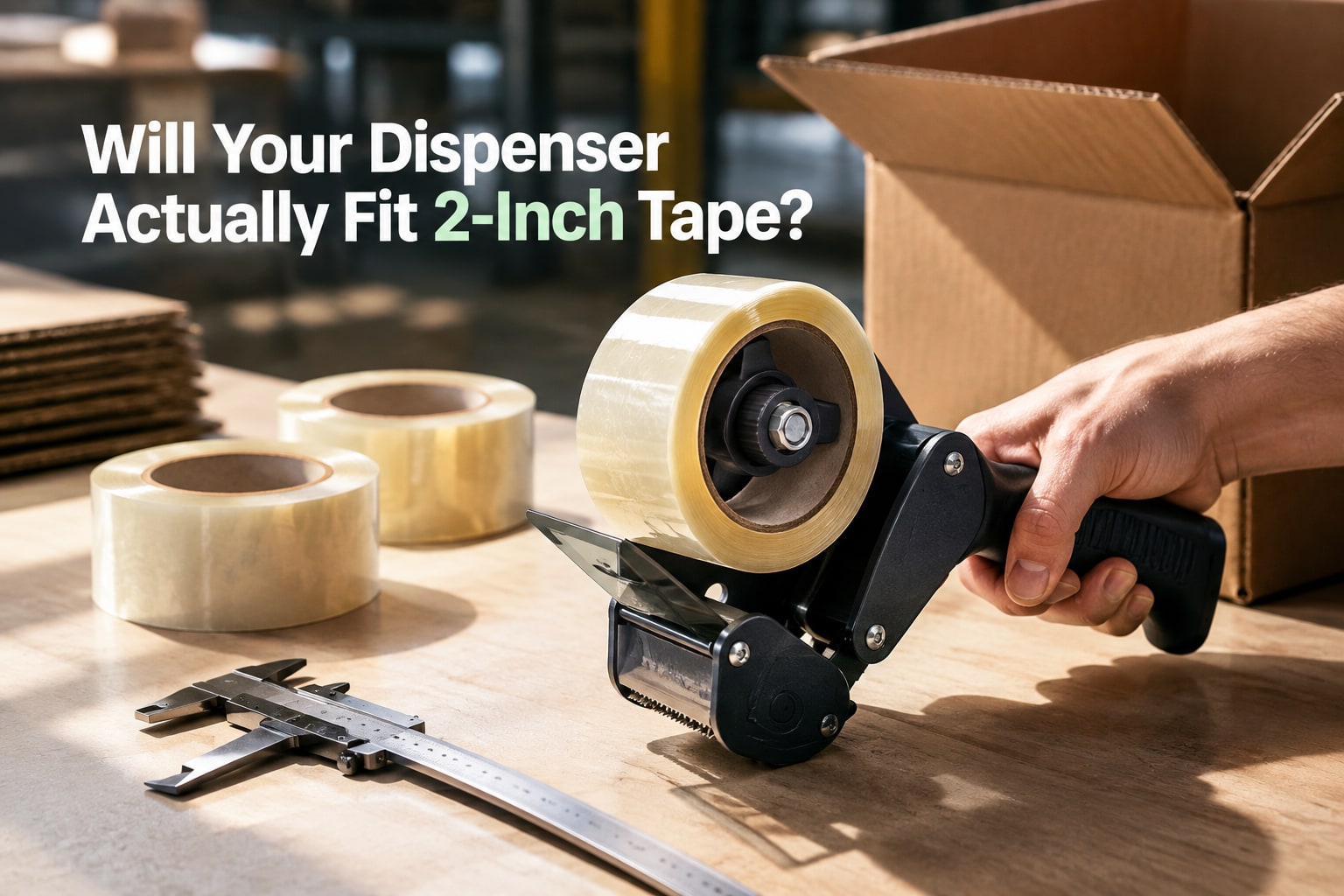

How to load and use a handheld carton-sealing gun
Install the roll on a mandrel that matches its cardboard core, then feed the tape adhesive-side down toward the cutting blade. A 2-inch tape roll is usually about 48–50 mm wide, but its core may be 1, 2, or 3 inches, so do not force a loose roll onto the spindle.
- Check that the dispenser accepts the roll width, core inside diameter, and outside diameter. Confirm that the side guides do not pinch the roll.
- Slide the roll onto the spindle with the adhesive side facing down as the tape unwinds.
- Pull the tape beneath the tension roller or guide, following the tool’s feed path, and leave 75–100 mm extending beyond the serrated blade.
- Adjust the brake or tension control until the roll unwinds without spinning freely. Excess tension stretches tape and makes cutting difficult.
- Fold the carton’s top flaps together so their edges meet over the centre seam.
- Place the tape’s leading end 50–75 mm onto one side panel, pull the dispenser across the seam, and press the tape down as you move.
- Continue 50–75 mm onto the opposite panel, angle the dispenser against the serrated blade to cut the tape, then rub the strip firmly along the seam and both panels.
A tape dispenser for packaging boxes applies and cuts tape; it does not replace hand pressure. If the blade tears the backing instead of cutting it cleanly, replace the blade or test a tape with a suitable thickness.
Match the dispenser to the tape and your workload
A handheld carton-sealing gun is the right choice when you seal repeated cartons at a packing bench and need one-handed application, controlled tension, and a quick cut. It suits ordinary carton-sealing tape better than scissors, but it becomes a bottleneck when several workers need simultaneous tools or when every parcel requires a different tape.
Before buying a tape dispenser for packing tape, match the roll and tool on these points:
- Tape width: confirm whether the dispenser accepts 48 mm or 50 mm rolls. A nominal 2-inch model can have narrow side guides, and a roll only a few millimetres wider can bind.
- Core inside diameter: specify whether the roll has a 1-inch, 2-inch, or 3-inch cardboard core.
- Maximum roll outside diameter: compare the actual roll diameter, not only its length. A 65-metre roll can fit the width but rub against the frame if its tape is thicker.
A brown packaging tape with dispenser is not a performance specification. Brown tape may use BOPP, PVC, or paper backing, so state the backing, adhesive type, thickness, width, core, and roll length when ordering.
Do not pair filament-reinforced tape with a light-duty gun. Glass fibres can remain uncut or demand excessive force; use a reinforced cutting edge instead. ASTM D5486 concerns packaging tape performance, not whether a particular blade, brake, or operator technique will work.
What to ask a Bangalore supplier before ordering
Ask the supplier to confirm compatibility with the actual roll, not simply label the tool “2-inch.” A tape dispenser for packing boxes must match tape width, cardboard-core inside diameter, and maximum roll outside diameter.
- “Does this tape dispenser for packaging tape accept 48 mm, 50 mm, or both?” A narrow frame or side guide can bind a roll that is only a few millimetres wider.
- “What core sizes does it take: 1-inch, 2-inch, or 3-inch?” Measure the cardboard tube inside your transparent and brown rolls; tape width does not reveal core size.
- “What is the maximum roll outside diameter, and what tape length does that accommodate?” A 65-metre roll can fit the width slot yet jam inside the frame if its wound diameter is too large.
- “Will the serrated blade cut both backings cleanly?” Request a trial using the exact transparent BOPP and brown BOPP rolls you will buy.
- “Are the brown rolls actually BOPP?” Brown packaging tape with dispenser describes colour and format, not backing or adhesive. Confirm BOPP backing, adhesive type, thickness, width, core, and roll length separately.
A supplier such as Packbox.In should verify those dimensions against the specific dispenser and rolls, rather than treating every 2-inch product as interchangeable. Keep rolls in their original packaging, away from direct sun, heat, dust, and high humidity, then condition them in the work area before the fit and sealing trial.
Follow the tape manufacturer’s storage limits.
Related products
 | TAPE DISPENSER TAPE DISPENSER ₹350 Our Tape Dispensers are designed to make packaging faster, easier, and more efficient. |
 | TAPES Transperent Tape 2 Inch 65 Meter ₹70 Strong self adhesive for any type of packaging.Easy To apply No Breakage , 40 Micron Tape . |
Frequently asked questions
Does a 2-inch tape roll fit every packing tape dispenser?
No. “2-inch” usually means tape width of approximately 48–50 mm. Check the roll’s core inside diameter and outside diameter against the dispenser’s spindle and side plates.
How do you measure a tape roll for a dispenser?
Measure the tape width across the roll, the core’s inside diameter, and the roll’s outside diameter. Compare all three measurements with the dispenser’s stated limits.
How do you load a handheld carton-sealing gun?
Place the roll on the spindle with the adhesive facing down toward the box. Thread the tape under the guide roller, through the tension mechanism, and across the cutting blade path before sealing.
What should you ask a Bangalore supplier before ordering?
Ask for the supported tape width, core diameter, maximum roll diameter, dispenser dimensions, blade availability, and compatibility with your tape adhesive and daily workload.
